In high-volume precision manufacturing, centerless grinding stands out as a transformative process, redefining efficiency in cylindrical part production. Unlike traditional cylindrical grinding, which relies on chucks or centers to secure workpieces, centerless grinding eliminates workpiece fixturing, enabling unparalleled speed and accuracy. At Zhengzhou Ruizuan Diamond Tools, we combine decades of abrasive expertise with engineering innovation to deliver diamond wheels tailored for centerless applications, empowering manufacturers to achieve micron-level tolerances in mass production.
The Working Principle of Centerless Grinding: A Fixture-Free Innovation
Centerless grinding operates on a unique three-component system that eliminates the need for workpiece clamping, minimizing distortion and maximizing throughput:
Core Components
Grinding Wheel: The primary cutting tool, typically rotating at 1,500–3,000 RPM, responsible for material removal. Its abrasive composition (diamond or CBN) is engineered for the workpiece material.
Regulating Wheel: A rubber or resin-bonded wheel rotating at 1/20–1/50 the speed of the grinding wheel. It drives workpiece rotation and controls axial feed via friction.
Work Rest Blade: A hardened steel or ceramic support (angled at 30°–45°) that positions the workpiece between the two wheels, maintaining consistent alignment.
Operational Dynamics
Workpieces are loaded onto the work rest blade, positioned between the grinding wheel and regulating wheel.
The regulating wheel’s rotation spins the workpiece while imparting axial movement (adjusted via blade angle or wheel tilt).
The grinding wheel removes material continuously as the workpiece feeds through, achieving precise diameters and surface finishes without fixturing-induced stress.
Three Key Methods of Centerless Grinding Machines

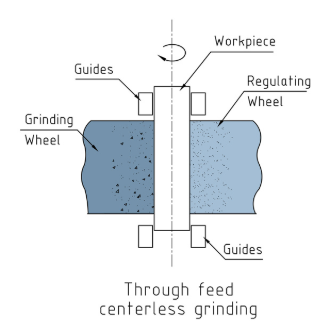

1. Through-Feed Grinding: High-Volume Efficiency
2. Plunge Grinding: Precision for Complex Geometries
3. End-Feed Grinding: Versatility for Asymmetric Parts

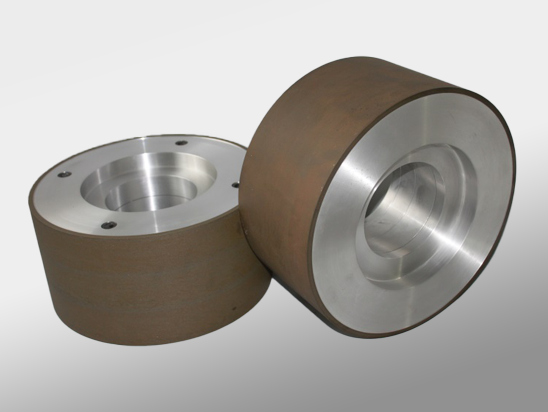

Ruizuan’s Centerless Grinding Diamond Wheels: Engineered for Excellence
Our diamond and CBN wheels are tailored to the unique demands of centerless grinding, with formulations optimized for material compatibility, speed, and precision:
Resin-Bonded Diamond/CBN Wheels
Key Features: Self-sharpening phenolic resin matrix with 20–25% porosity, minimizing heat buildup.
Bond Hardness: HRC 25–35 (soft to medium).
Grit Range: 80#–400#.
Ideal Applications: non-ferrous metals, like aluminum and copper alloys; achieves Ra 0.05μm surface finish.
Advantage: Extends wheel life by 5–8x compared to aluminum oxide wheels in non-ferrous grinding.
Centerless grinding’s fixture-free design and exceptional precision make it indispensable in modern manufacturing. At Zhengzhou Ruizuan Diamond Tools, our commitment to abrasive innovation ensures that every wheel—from resin-bonded to metal-bonded—delivers the consistency and durability required for centerless applications.
