Introduction: The Backbone of Cylindrical Precision Machining
External grinding is the cornerstone of manufacturing rotationally symmetric components—from automotive shafts to aerospace turbine blades—delivering tight tolerances (±1μm) and superior surface finishes (Ra <0.05μm). The performance of this process hinges on the grinding wheel, and Zhengzhou Ruizuan offers a comprehensive portfolio tailored to every material and precision requirement: diamond external grinding wheels, CBN external grinding wheels, and conventional abrasive external grinding wheels. This guide demystifies each type, detailing their technical traits, target applications, and compatible machining methods to help you unlock optimal efficiency.
Ruizuan’s External Grinding Wheel Portfolio: Engineered for Specific Machining Challenges
Each wheel type is designed to leverage the unique properties of its abrasive material, ensuring compatibility with workpiece materials and machining goals.
1. Diamond External Grinding Wheels: For Non-Ferrous & Superhard Materials
Diamond’s extreme hardness (5,000 HV)—the hardest natural abrasive—makes these wheels indispensable for machining materials that resist conventional abrasives. They excel where CBN fails (reactivity with iron) and outperform traditional wheels in precision and longevity.
Controlled Bond Systems: Available in resin, vitrified, and metal bonds. Resin bonds offer low heat generation for heat-sensitive materials; vitrified bonds deliver shape retention for precision profiling; metal bonds handle heavy-load stock removal.
Target Materials & Workpieces
Non-Ferrous Metals: Aluminum, titanium, copper, and their alloys. Ideal for automotive piston grooves, aerospace titanium shafts, and electronic device casings.
Superhard Materials: Tungsten carbide (WC-Co), ceramics (alumina, zirconia), and PCD/PCBN tool blanks. Used for machining carbide cutting inserts, ceramic medical implants, and semiconductor wafer chucks.
Composites: Carbon fiber-reinforced polymers (CFRP) and glass fiber composites. Critical for aerospace panel machining, minimizing delamination and fiber pullout.
2. CBN External Grinding Wheels: For Hardened Ferrous Metals
Cubic boron nitride (CBN) is the ultimate choice for hardened ferrous metals (≥50 HRC), offering chemical inertness to iron (unlike diamond) and exceptional thermal stability (resists 1,300°C grinding temperatures).
High Wear Resistance: Outlasts alumina wheels by 50–100x on 60 HRC steel, reducing per-part grinding costs by 40%.
Precision Retention: Vitrified/metal bonds maintain dimensional accuracy (±0.5μm) across long production runs, ideal for complex profiles like gear teeth.
Target Materials & Workpieces
Hardened Steel: 58–65 HRC alloy steel (20CrMnTi), tool steel (D2, H13), and bearing steel (GCr15). Used for grinding automotive transmission gears, bearing races, and HSS cutting tools.
Superalloys: Inconel 718, Hastelloy, and ferrous-based titanium alloys. Critical for aerospace turbine blades and engine components.
Cast Iron: Ductile iron (ADI) and gray cast iron (HT300). Suitable for machining engine blocks, crankshafts, and heavy machinery housings.

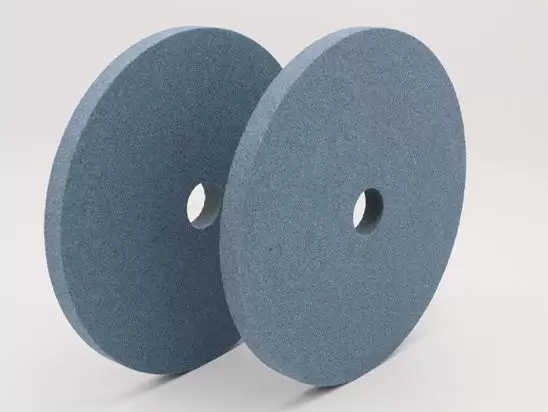

3. Conventional Abrasive External Grinding Wheels: Cost-Effective for General Ferrous Machining
For non-hardened ferrous metals and low-precision applications, Ruizuan’s conventional wheels (aluminum oxide, silicon carbide) offer reliable performance at an economical price point.
Core Features
Versatile Abrasive Options: Aluminum oxide (Al₂O₃) for mild steel and cast iron; silicon carbide (SiC) for non-ferrous metals and brittle materials.
Cost-Efficiency: Ideal for low-volume production or general-purpose grinding, with easy maintenance and replacement.
Target Materials & Workpieces
Mild Steel (≤30 HRC): 45# steel shafts, structural components, and low-carbon steel parts.
Cast Iron (≤45 HRC): Gray cast iron engine brackets, pump housings, and decorative metal components.
Non-Ferrous Metals (Low Precision): Aluminum profiles, copper pipes, and zinc die-cast parts.
Key Advantage
Balances performance and cost for non-critical components, making them a staple in general manufacturing workshops.
