Introduction: Redefining Grinding Performance with Hybrid Bond Innovation

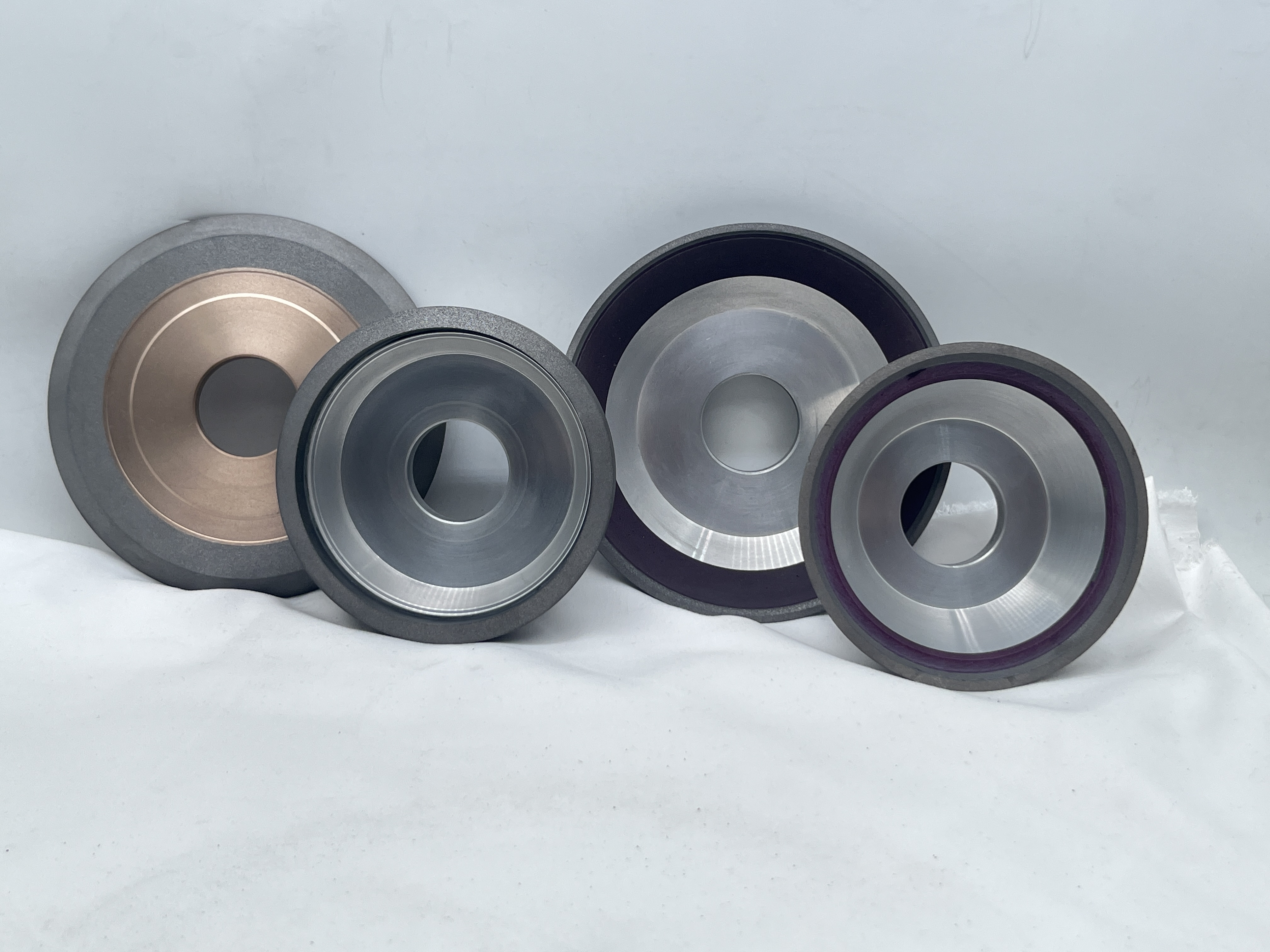

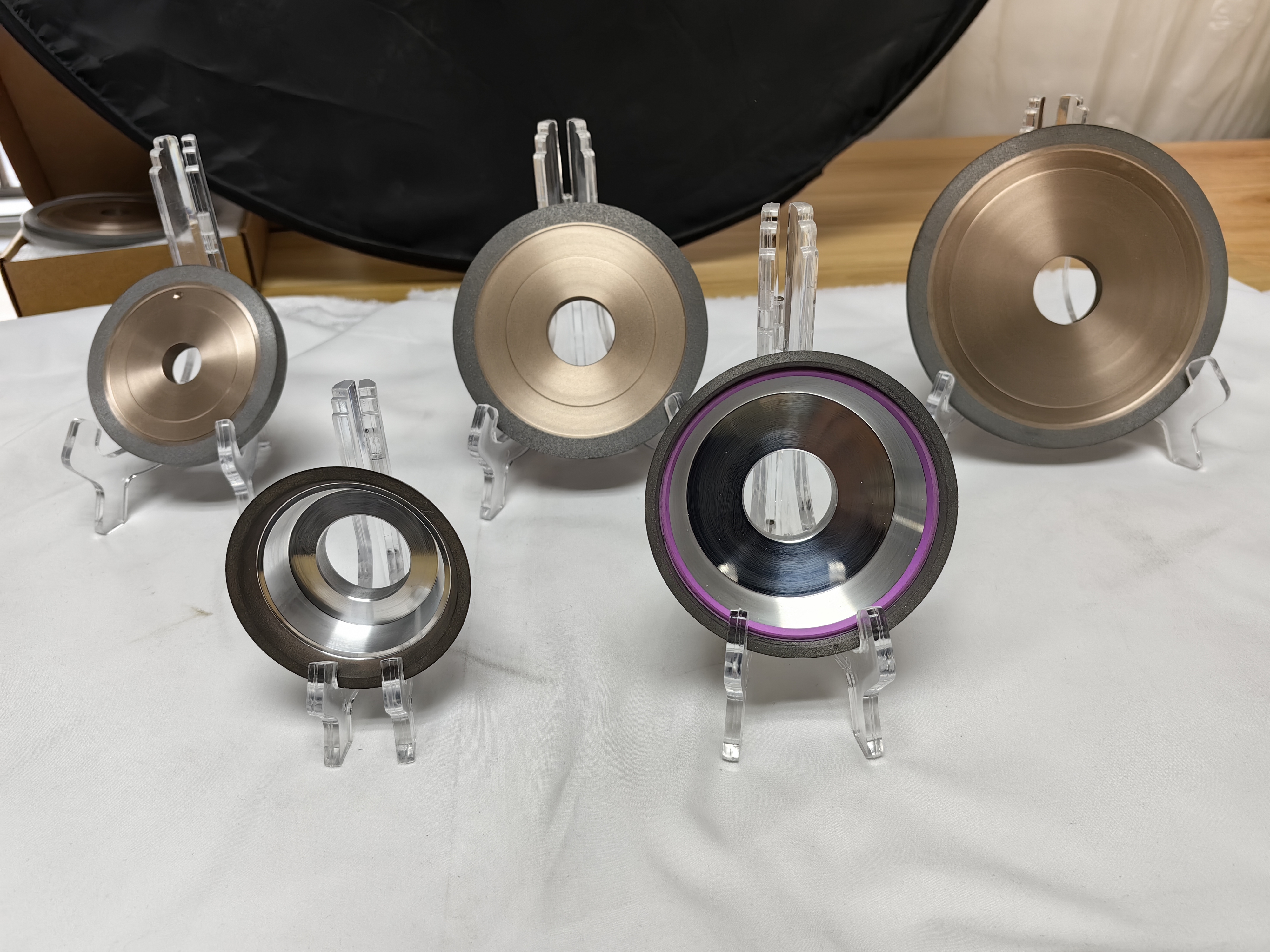

In precision machining, no single bond system can address every challenge—resin bonds excel at sharpness but lack durability, metal bonds offer longevity but sacrifice cutting speed, and vitrified bonds deliver precision but struggle with heat-sensitive materials. Zhengzhou Ruizuan’s hybrid bond diamond grinding wheels solve this dilemma by integrating two or more advanced bond matrices with high-purity diamond grains. Creates a grinding tool that balances ultra-sharp cutting action, exceptional wear resistance, and superior thermal stability—setting a new standard for machining non-ferrous metals, superhard materials, and composites.
Designed for industries demanding both efficiency and precision (aerospace, automotive, medical, electronics), Ruizuan’s hybrid bond diamond wheels outperform single-bond alternatives by 30–50% in key metrics: tool life, surface finish, and material removal rate (MRR).
4 Core Advantages of Ruizuan’s Hybrid Bond Diamond Wheels
The synergy of dual bond systems delivers unmatched performance that single-bond wheels cannot replicate:
1. Balanced Sharpness & Durability
•Sharp Cutting Action: The resin phase (or low-density ceramic) provides free-cutting edges, reducing grinding forces by 25% vs. pure metal bond wheels. This minimizes workpiece deformation—critical for thin-walled components like ceramic medical implants.
2. Superior Thermal Stability & Heat Dissipation
•The hybrid bond’s controlled porosity (15–22%) and thermal conductivity (20–35 W/m·K) dissipate grinding heat 30% faster than single-bond alternatives. This reduces workpiece annealing (softening) by 50% when machining heat-sensitive materials like titanium alloys (Ti-6Al-4V) and CFRP.
•Resists wheel glazing even at high MRR (0.7–1.3mm³/min), eliminating the need for frequent dressing and boosting production efficiency.
3. Exceptional Precision & Shape Retention
•Ideal for form grinding applications: our resin-metal hybrid wheels consistently deliver Ra μm surface finish on semiconductor wafer chucks and optical mold cavities.
4. Versatility Across Multiple Materials
Unlike single-bond wheels limited to specific materials, hybrid bond wheels adapt to diverse machining needs:
•Non-ferrous metals (aluminum, copper, titanium): Resin-ceramic hybrid minimizes loading and heat damage.
•Superhard materials (carbide, ceramics, PCD): Resin-metal hybrid balances aggressive cutting and wear resistance.
•Composites (CFRP, glass fiber): Ceramic-metal hybrid prevents fiber pullout and delamination.
Key Applications: Industries & Workpieces
Ruizuan’s hybrid bond diamond wheels are trusted by global manufacturers for mission-critical machining tasks:
1. Aerospace Manufacturing
•Workpieces: CFRP aircraft panels, titanium alloy landing gear components, Inconel 718 turbine blades.
•Performance: Resin-ceramic hybrid wheels reduce CFRP machining cycle time by 28% while maintaining Ra 0.08μm surface finish—meeting AMS 3819 standards.
2. Automotive Precision Components
•Workpieces: Tungsten carbide valve seats, aluminum alloy piston grooves, ceramic sensor housings.
•Performance: Resin-metal hybrid wheels grind carbide valve seats to ±0.003mm dimensional tolerance, with 2x longer life than conventional resin wheels.
3. Medical Device Production
•Workpieces: Zirconia dental implants, titanium femoral stems, ceramic surgical instruments.
•Performance: Ceramic-metal hybrid wheels achieve Ra 0.03μm surface finish on zirconia implants, complying with ISO 10993 biocompatibility requirements.
4. Electronic & Semiconductor Industry
•Workpieces: Silicon wafer chucks, ceramic smartphone backplates, PCD semiconductor dicing blades.
•Performance: Resin-ceramic hybrid wheels maintain flatness 00mm on tungsten carbide wafer chucks, supporting sub-micron semiconductor manufacturing.
5. Tool & Die Machining
•Workpieces: Carbide cutting tool inserts, PCD-tipped router bits, ceramic mold cavities.

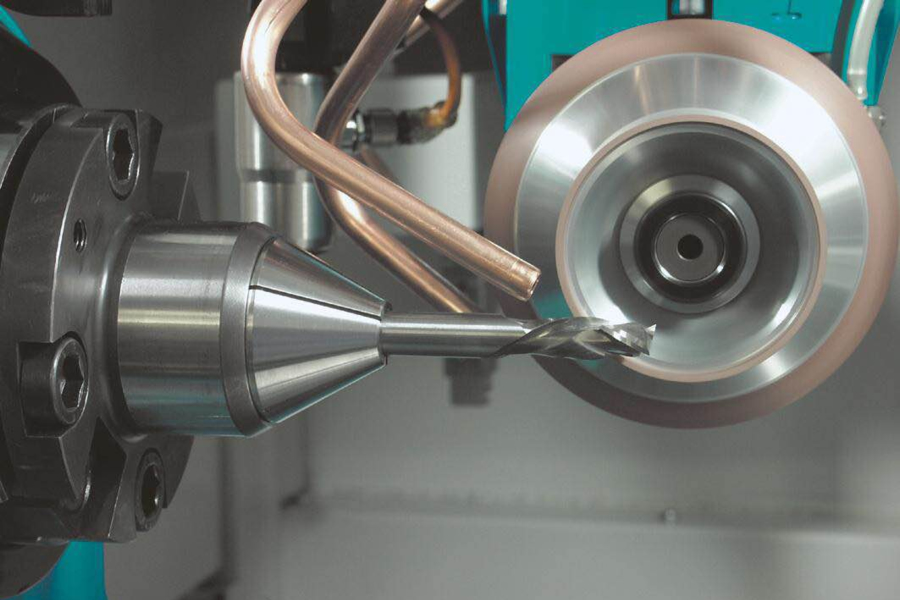

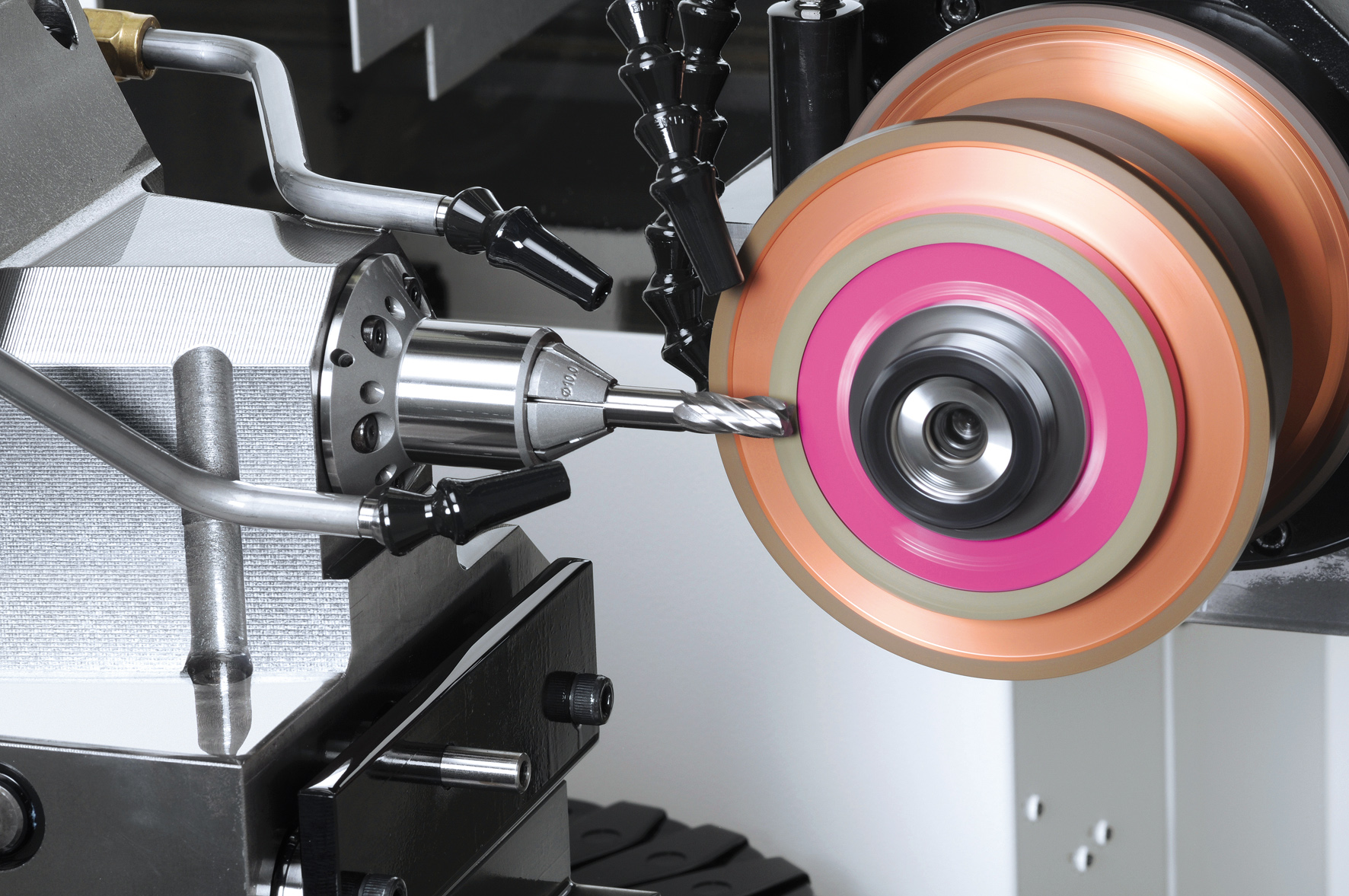

•Performance: Resin-metal hybrid wheels sharpen carbide inserts with cutting edge radius extending tool life by 30% for end users.
Ruizuan’s hybrid bond diamond wheels are not just a tool—they are a solution to the tradeoffs that have long plagued precision grinding. By fusing the best properties of multiple bond systems, we deliver a versatile, high-performance product that reduces costs, improves quality, and accelerates production.
