Introduction: The Role of External Grinding Wheels in Precision Manufacturing
External grinding is a cornerstone of cylindrical machining, focusing on shaping the outer surfaces of rotationally symmetric workpieces—from shafts and bearings to aerospace components. At Zhengzhou Ruizuan Diamond Tools, we engineer external grinding wheels to deliver unrivaled precision, with tolerances as tight as ±2μm and surface finishes down to Ra 0.05μm. This guide demystifies external grinding wheels, their selection criteria, unique benefits, and industry applications, ensuring your machining operations achieve peak efficiency.
What Is an External Grinding Wheel?

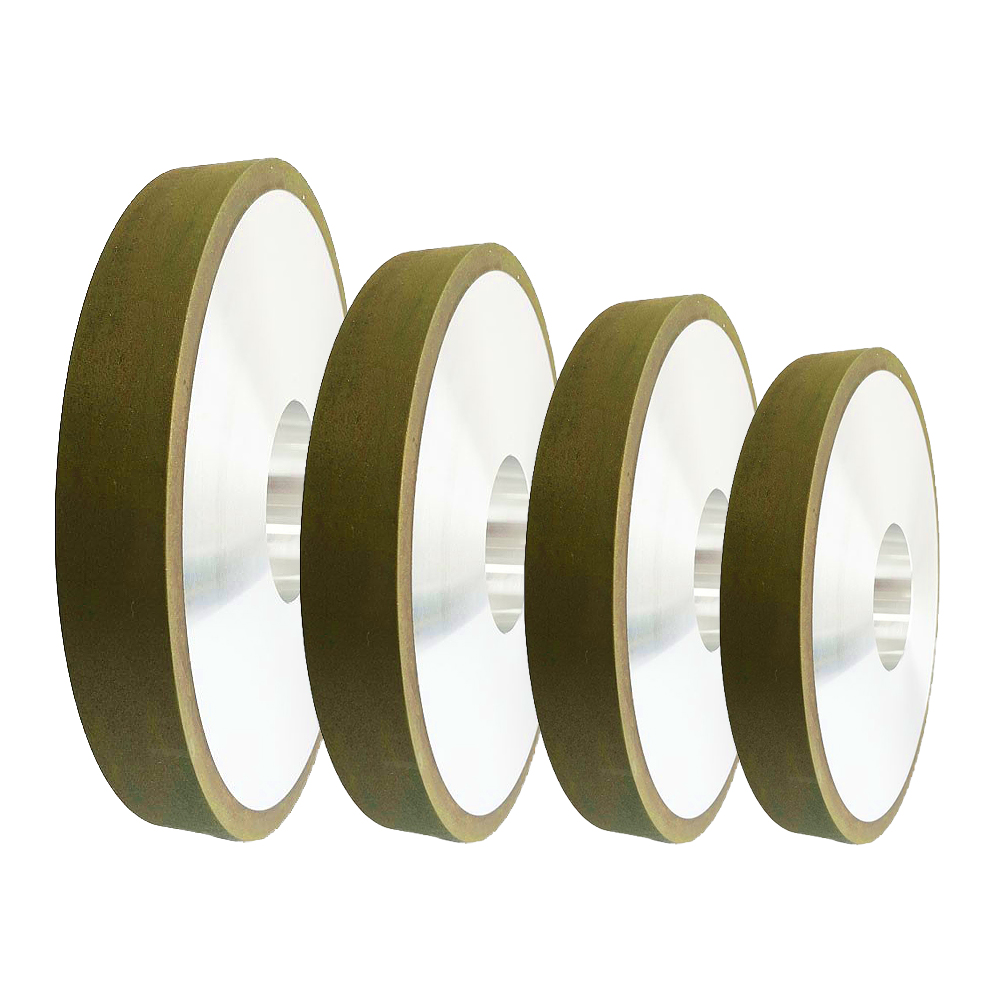

An external grinding wheel is a rotating abrasive tool designed to remove material from the outer diameter (OD) of cylindrical workpieces. Unlike internal grinding wheels (for bores) or surface grinding wheels (for flat surfaces), external wheels are optimized for:
Rotational Symmetry: Maintaining concentricity between the workpiece axis and grinding wheel axis.
Controlled Material Removal: Achieving precise diameters, tapers, or profiles (e.g., radii, threads) on cylindrical surfaces.
Diverse Workpiece Sizes: From micro-shafts (5mm OD) in medical devices to large turbine shafts (1m+ OD) in power generation.
Constructed with abrasive grains (diamond, CBN, or aluminum oxide) bonded by resin, metal, or hybrid materials, these wheels are tailored to workpiece hardness, material type, and finish requirements.
How to Select the Right External Grinding Wheel
1. Workpiece Material and Hardness
Non-ferrous/Soft Metals (≤30 HRC): Diamond resin wheels (80–180# grit).
Ferrous/Medium Hardness (30–50 HRC): CBN hybrid wheels (120–240# grit).
Hardened Ferrous (≥50 HRC): CBN metal wheels (150–320# grit).
2. Finish and Tolerance Requirements
Rough Grinding (0.1–0.5mm stock removal): Coarse grit (60–100#); resin or metal bond.
Fine Grinding (Ra 0.2–0.8μm): Medium grit (120–240#); hybrid or resin bond.
Superfinish (Ra <0.2μm): Fine grit (320–600#); resin bond with diamond or CBN.
3. Machine Compatibility
CNC Grinders: High-precision hybrid or metal bond wheels (balanced to G2.5 at 3,000 RPM).
Manual Grinders: Resin bond wheels (easier to dress and maintain).
Advantages of Ruizuan External Grinding Wheels
Precision Engineering: Every wheel undergoes laser profilometry to ensure runout <0.01mm.
Longevity: CBN metal bond wheels achieve 400–600 hours of continuous use on 60 HRC steel.
Cost Efficiency: Hybrid bond wheels reduce tool change downtime by 40% vs. conventional options.
Customization: Tailored grit sizes, bonds, and diameters (50mm–1m) for unique applications.
External grinding wheels are the unsung heroes of cylindrical machining, enabling the tight tolerances and surface finishes that define modern manufacturing. At Zhengzhou Ruizuan Diamond Tools, our commitment to abrasive innovation—from resin bonds to hybrid CBN technology—ensures your operations stay ahead in precision and productivity.
