In the realm of manufacturing, achieving tight tolerances and superior surface finishes is non-negotiable for critical components—from aerospace turbine blades to medical implants. While turning and milling excel at material removal, grinding stands unrivaled in precision, consistently delivering tolerances as low as ±1μm and surface roughness values (Ra) below 0.02μm. At Zhengzhou Ruizuan Diamond Tools, we leverage decades of expertise in abrasive technology to explain why grinding outperforms other machining processes, and how our specialized wheels further enhance this precision.
The Science Behind Grinding’s Superior Precision
1. Mechanistic Differences: Micro-Cutting vs. Macro-Cutting

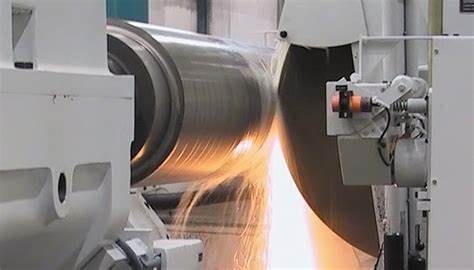

Grinding: A Micro-Cutting Phenomenon
Grinding relies on thousands of tiny abrasive grains (each acting as a miniature cutting tool) embedded in a wheel. These grains remove material in microscopic chips (typically 0.1–5μm in size), allowing for incremental control over stock removal. The distributed cutting action reduces localized stress on the workpiece, minimizing deformation and ensuring dimensional stability.

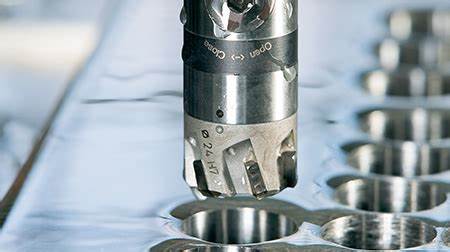

Turning/Milling: Macro-Cutting Limitations
Turning (single-point cutting) and milling (multi-point cutting) use solid tools with defined edges to remove material in larger chips (often 50–500μm). This concentrated force creates higher friction and heat, leading to workpiece deflection, thermal expansion, and reduced tolerance control—especially in high-strength alloys.
2. Surface Finish and Tolerance Control
Grinding’s Atomic-Level Precision
The fine grit sizes (up to 2000#) and controlled wheel wear in grinding enable surface finishes that mimic polished surfaces. For example, our vitrified diamond wheels achieve Ra 0.02μm on carbide components, surpassing the Ra 0.8–3.2μm typical of turning.
Dimensional Stability
Grinding’s low material-removal rates (0.001–0.1mm per pass) reduce workpiece stress, ensuring that dimensions remain stable post-machining. In contrast, turning/milling’s aggressive stock removal can induce residual stresses, causing part distortion over time.
Here’s a comprehensive guide to our precision grinding wheel portfolio, structured into three core categories to address the unique demands of modern manufacturing:

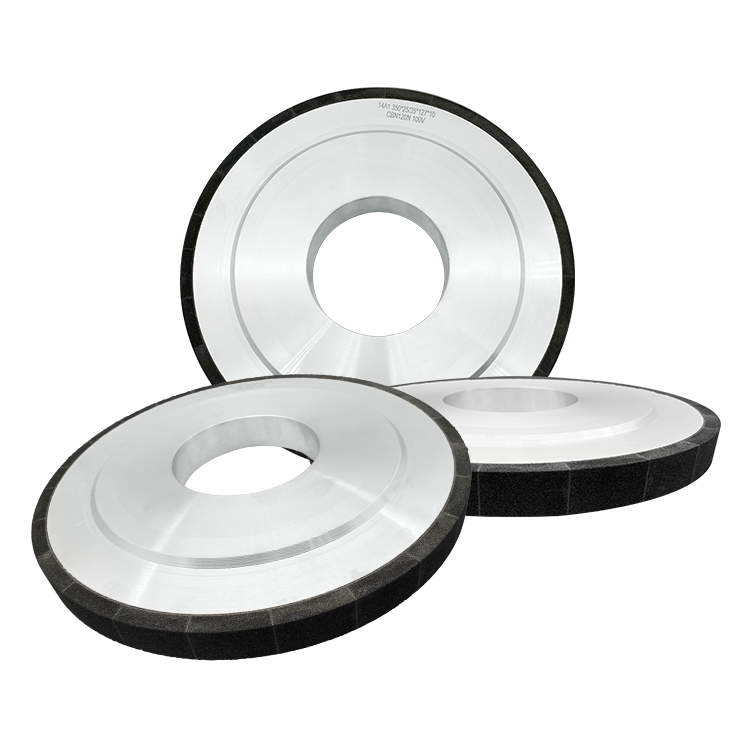

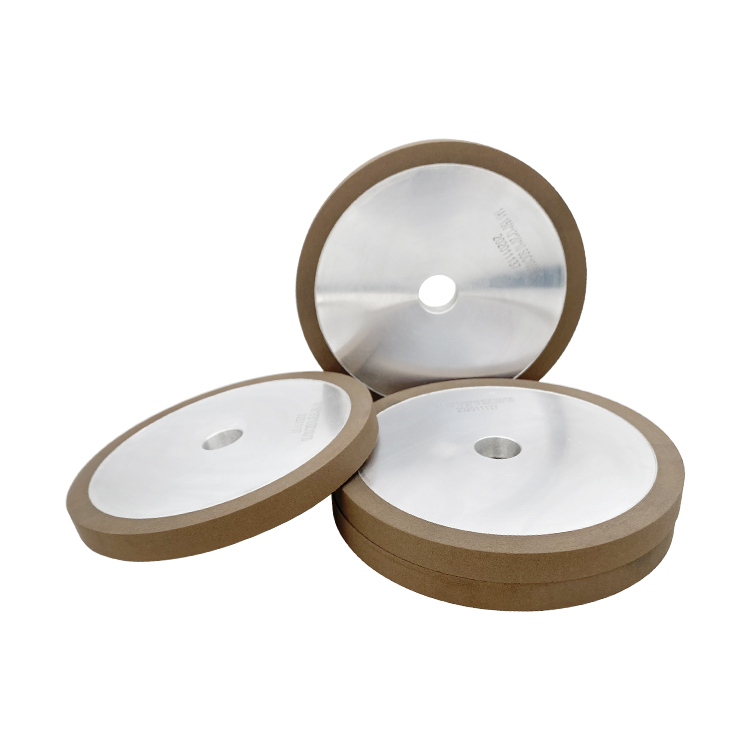

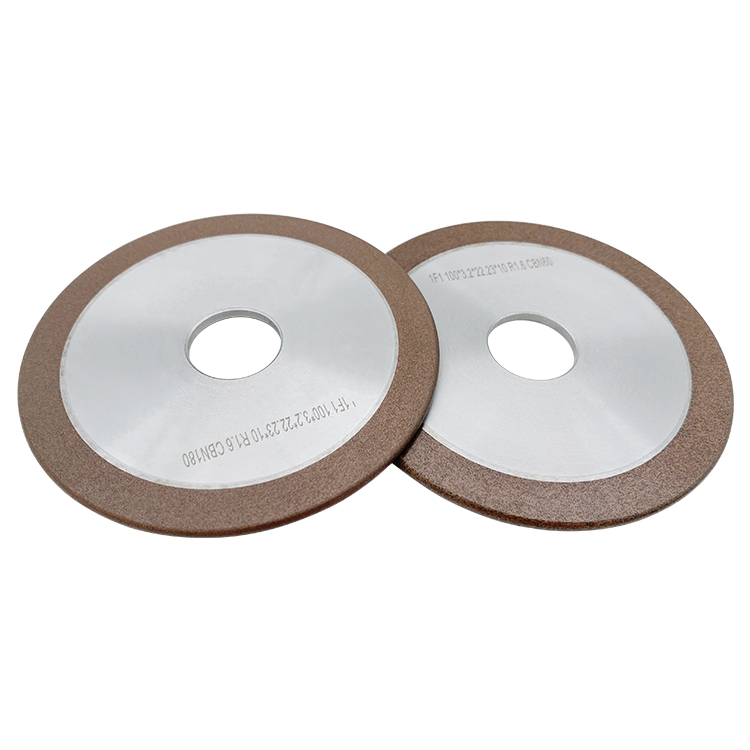

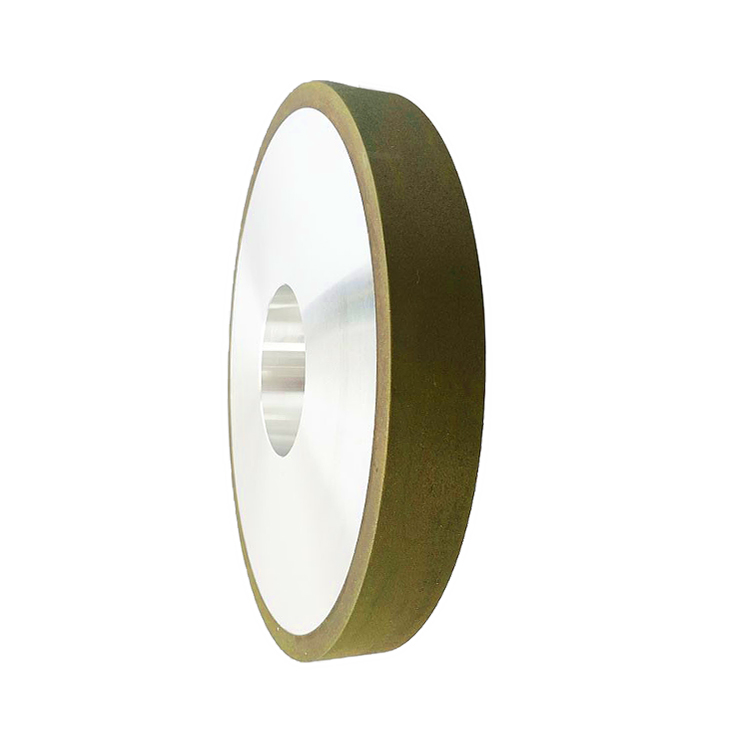

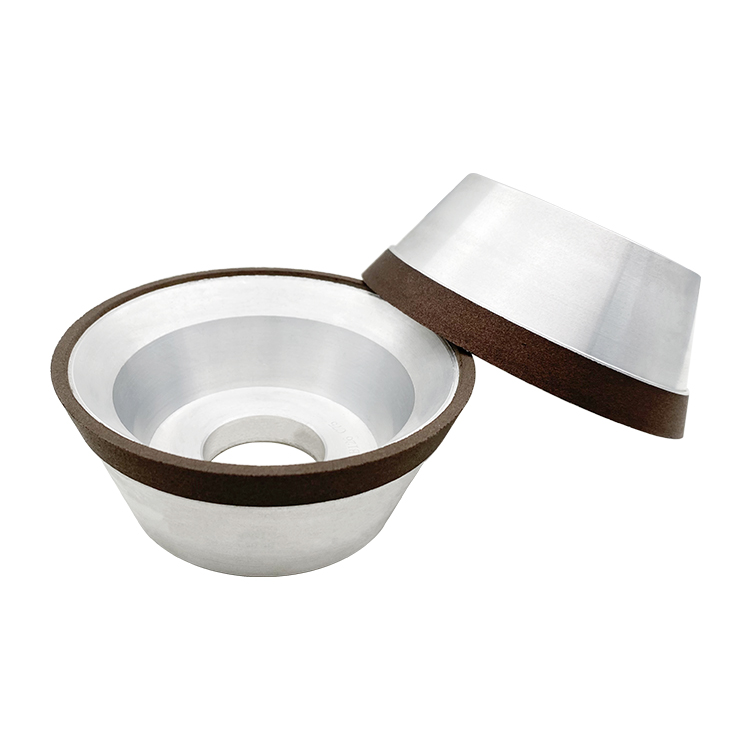

1. Resin Bond Diamond & CBN Grinding Wheels: Flexibility Meets Efficiency
Resin bonds, composed of phenolic resins with engineered fillers, are ideal for applications requiring high-speed precision and low heat generation.
Technical Advantages
Self-Sharpening Action: The bond matrix gradually wears away during grinding, exposing fresh abrasive grains for consistent cutting performance .
Heat Dissipation: Low thermal conductivity minimizes workpiece distortion, critical for heat-sensitive materials like titanium alloys and ceramics.
Formability: Complex geometries (e.g., gear teeth, turbine blades) can be achieved through precision molding.

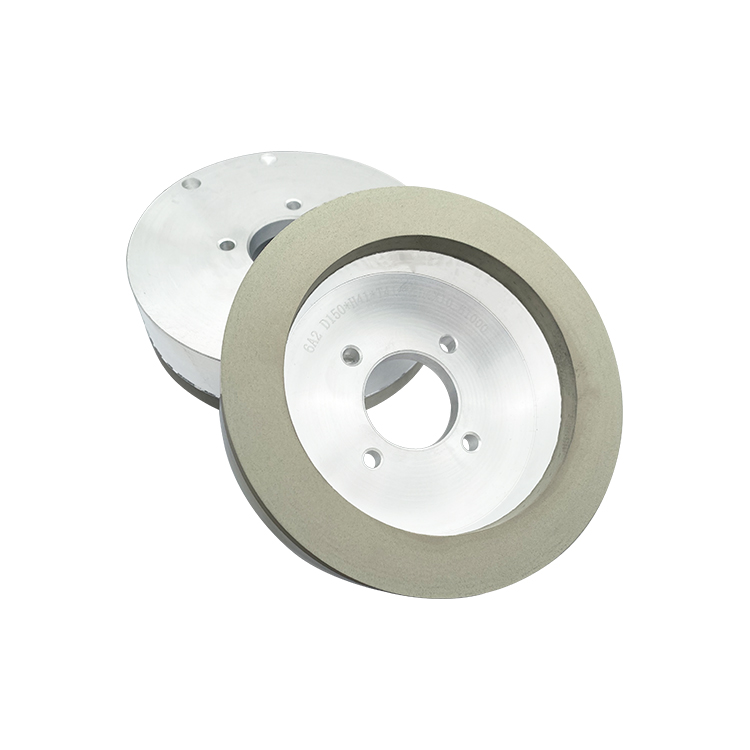

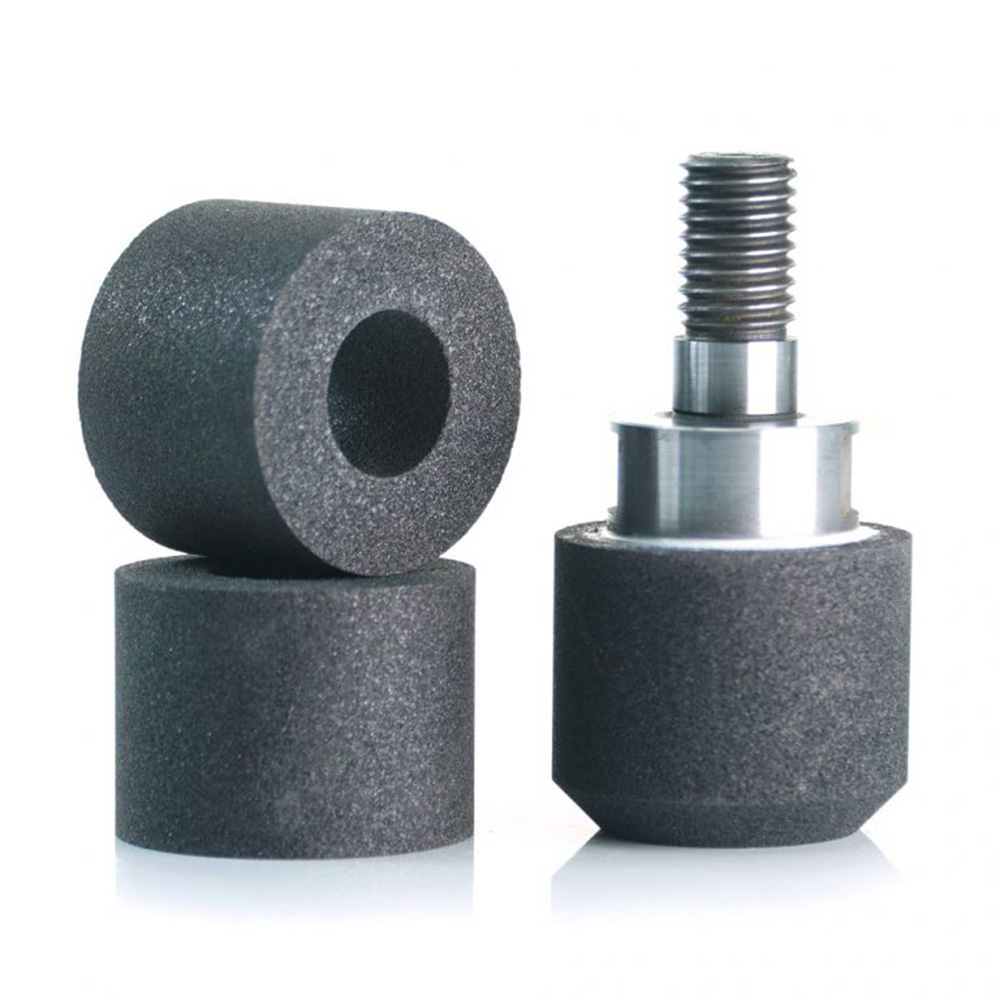

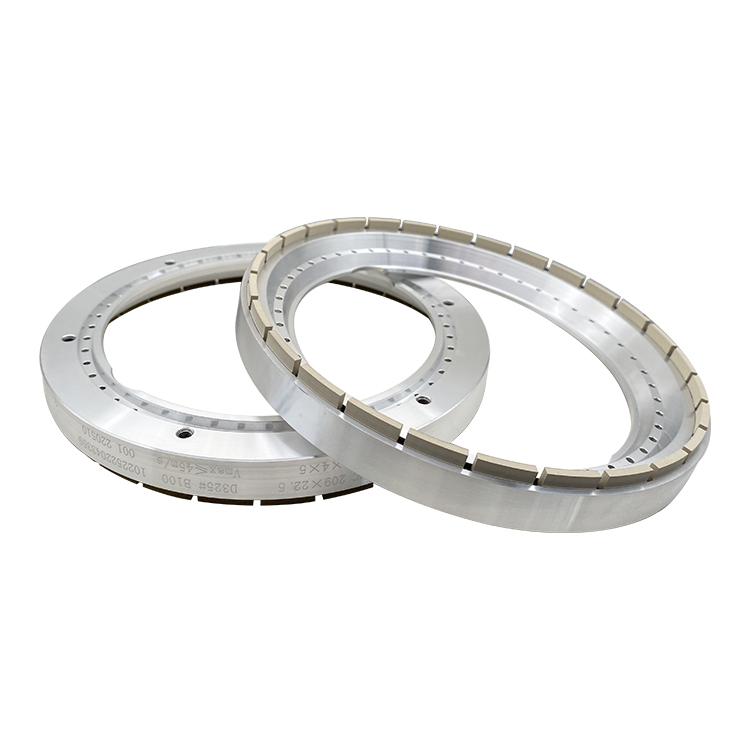

2. Vitrified Bond Diamond & CBN Grinding Wheels: Precision at High Temperatures
Vitrified bonds, formed by sintering ceramic powders (feldspar, kaolin), offer unrivaled thermal stability and shape retention.
Technical Advantages
Thermal Resistance: Maintain integrity up to 1,000°C, critical for grinding PCD (which degrades above 700°C) .
Controlled Porosity: 18–25% porosity ensures efficient coolant flow and chip evacuation, preventing wheel loading .
Longevity: 2–3x longer life than resin bonds in PCD tool grinding .

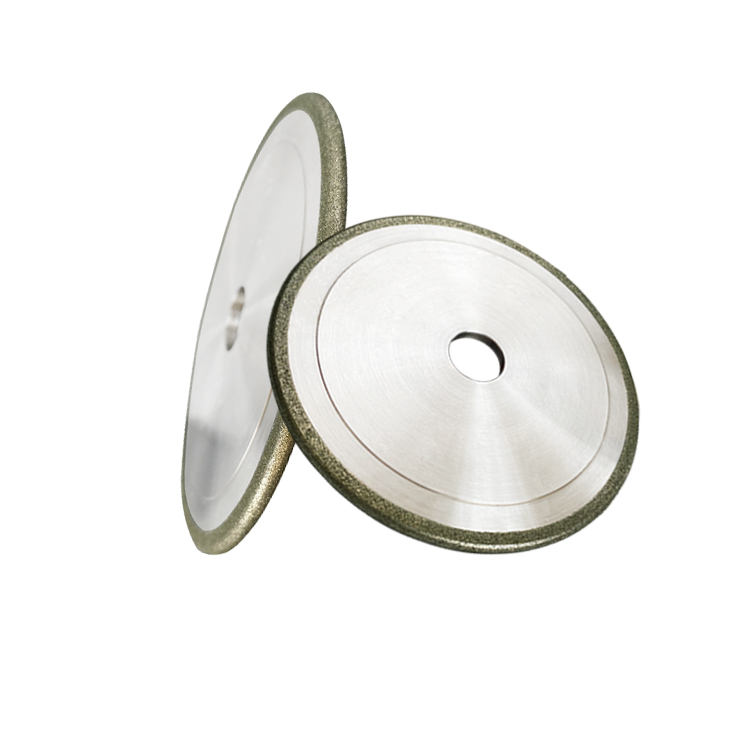

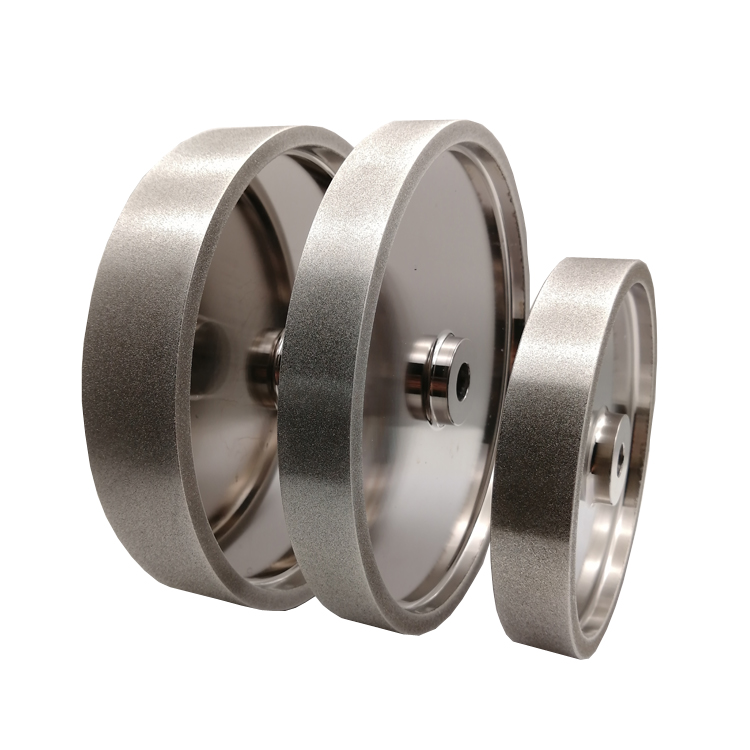

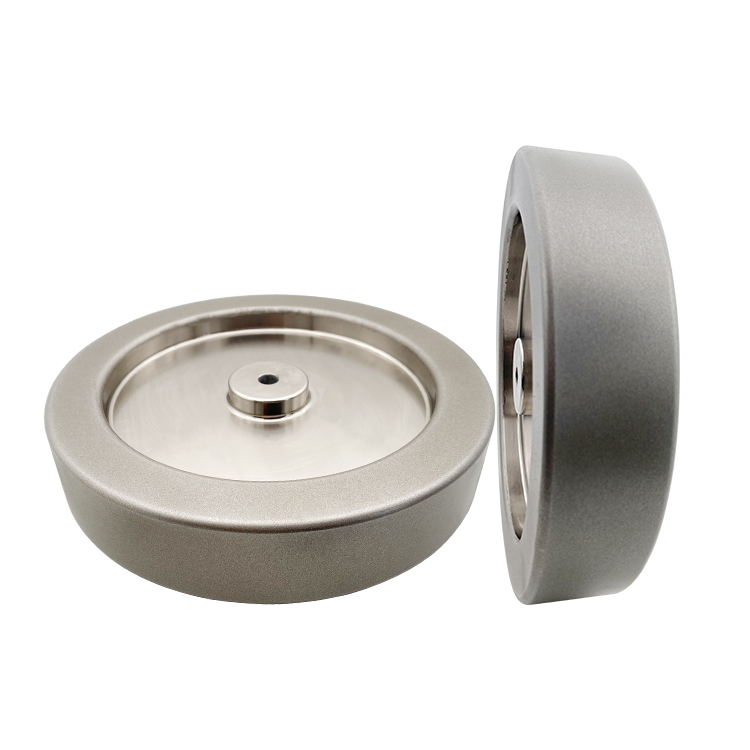

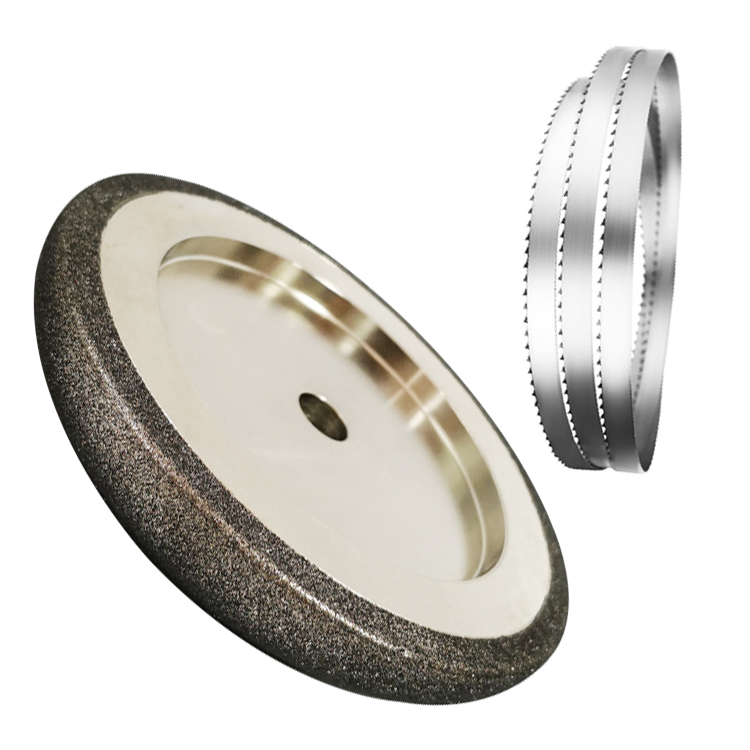

3. Electroplated Diamond & CBN Grinding Wheels: Aggressive Cutting for Complex Geometries
Electroplated wheels feature a single layer of diamond/CBN grains bonded to a metal substrate via nickel plating, offering unmatched material removal rates.
Technical Advantages
High Grain Concentration: 100–200% density ensures maximum cutting efficiency in roughing operations .
No Dressing Required: Ready-to-use out-of-the-box, ideal for automated production lines.
Form Holding: Maintain complex profiles (e.g., camshafts, semiconductor wafers) with ±0.005mm precision.
Grinding’s superiority in precision stems from its micro-cutting mechanism, controlled material removal, and ability to minimize workpiece stress—advantages that turning and milling cannot match. At Zhengzhou Ruizuan Diamond Tools, our engineered wheels amplify these benefits, enabling manufacturers to achieve unprecedented accuracy in critical applications.
