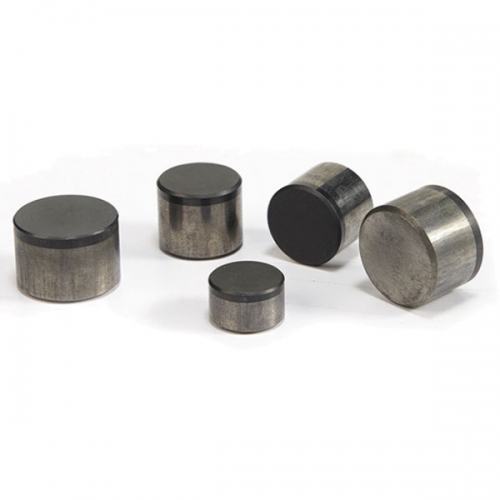

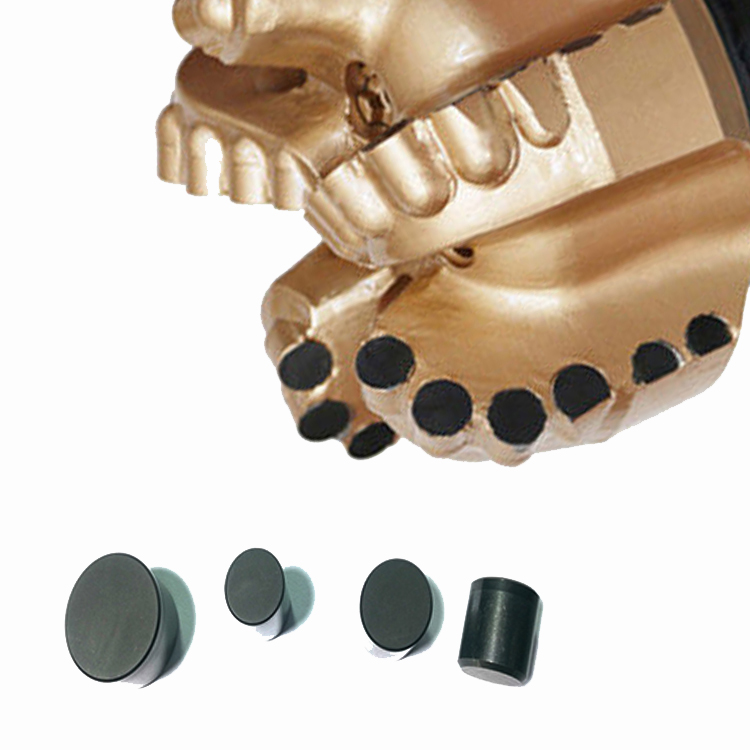

Polycrystalline Diamond Compact (PDC) cutters are core drilling components widely adopted in oil, gas, mining, and geotechnical exploration industries. Manufactured by sintering diamond micropowder onto a tungsten carbide substrate under ultra-high temperature and pressure, PDC cutters feature extreme hardness and abrasion resistance. However, their composite dual-phase structure creates formidable grinding obstacles: grinding diamond layer with diamond abrasives generates massive friction heat, while mismatched thermal expansion between diamond and carbide easily triggers diamond graphitization, interlayer delamination, micro-cracks, and dimensional out-of-tolerance defects.
Conventional resin-bond and metal-bond diamond wheels fail to resolve these inherent pain points. Resin wheels suffer rapid grit dulling, frequent wheel loading, and require repeated dressing; metal-bond wheels accumulate excessive heat, causing irreversible thermal damage to PDC cutters. As a professional superabrasive tool manufacturer, Zhengzhou Ruizuan’s vitrified (ceramic) bond diamond grinding wheels stand out as the industry’s best solution for PDC cutter rough grinding, profile forming and precision finishing. This article systematically elaborates why vitrified diamond wheels are uniquely qualified for PDC cutter machining, covering core technical mechanisms, exclusive product advantages, and industrial application value.
Core Technical Difficulties of PDC Cutter Grinding
To fully understand the irreplaceable value of vitrified diamond wheels, we first clarify three primary machining pain points of PDC cutters:
Extreme grinding resistance: PDC diamond layer reaches 90+ Mohs hardness, creating ultra-high grinding force. Dull abrasives produce friction instead of cutting, drastically lowering production efficiency.
High risk of thermal damage: Concentrated grinding heat over 700°C triggers diamond graphitization, cracking at the diamond-carbide bonding interface, and reduced cutter service life during drilling operations.
Poor profile retention of grinding tools: Deformable bond matrices lose geometric precision after long working hours, leading to inconsistent PDC cutter chamfer, radius and dimensional tolerances in mass production.
Why Vitrified Diamond Grinding Wheels Are Perfect for PDC Cutter Machining
Our vitrified diamond wheels adopt proprietary nano-silica reinforced ceramic bond and high-purity monocrystalline diamond grains, solving all three PDC grinding bottlenecks through four exclusive inherent properties unavailable to resin or metal bond alternatives.
1. Controlled Porous Ceramic Bond Eliminates Thermal Damage to PDC Cutters
Ruizuan precisely regulates 18–25% interconnected uniform porosity in the vitrified matrix during sintering. These internal pores act as coolant storage channels and chip evacuation passages, delivering cutting fluid directly to the grinding contact zone and dissipating grinding heat by 40% compared to resin bond wheelsMore Super....
This cooling effect suppresses diamond graphitization and prevents delamination between the diamond layer and carbide substrate. Even during continuous high-volume PDC batch grinding, no thermal micro-cracks or surface carbonization defects appear on finished PDC cutters.
2. Moderate Brittleness Delivers Continuous Self-Sharpening Performance
The vitrified ceramic bond features controllable micro-fracture toughness. When diamond grains wear dull after cutting hard PDC materials, the surrounding ceramic bond fractures slightly to expose fresh sharp diamond grit automatically.
This self-sharpening characteristic eliminates frequent wheel dressing required for resin wheels. In mass PDC production lines, Ruizuan vitrified wheels only need one initial dressing before operation, cutting dressing downtime by over 70% and boosting grinding efficiency by 3X vs. resin diamond wheels. No wheel loading occurs from tungsten carbide debris, maintaining stable cutting force throughout long shifts.
3. Ultra-High Rigidity Ensures Long-Term Shape Retention for Precise PDC Profiles
The nano-reinforced vitrified bond boasts compressive strength up to 125MPa, with rigid structural stability that resists deformation under heavy grinding loads. Each wheel undergoes G2.5 dynamic balance calibration and laser runout testing (≤0.002mm) before delivery.
When grinding PDC chamfers, arc radii and cylindrical outer surfaces, the wheel retains its original profile for over 800 PDC workpieces, maintaining consistent dimensional tolerance of ±0.01mm (far superior to ±0.03mm from resin wheels). Uniform geometry of finished PDC cutters guarantees stable drilling performance underground.
PDC cutter grinding is a superhard-on-superhard machining process that demands balanced heat control, cutting efficiency and geometric precision. Resin and metal bond diamond wheels cannot simultaneously satisfy all core production requirements, making vitrified ceramic bond diamond wheels the only optimal choice for modern PDC manufacturing.
Ruizuan’s vitrified diamond grinding wheels solve the three core grinding challenges of PDC cutters via controlled porous cooling, continuous self-sharpening, rigid shape retention and long-lasting coated diamond abrasives. Whether you are a PDC cutter mass manufacturer for oilfield drilling or a service factory specializing in PDC regrinding, our customized vitrified diamond wheel solutions will elevate your product yield, machining efficiency and overall profitability.
