Cylinder Honing Head Multi-Stone Honing Head Honing Stone for Bore Hon Cylinder Honing

Short Description:

With the rapid development of the automotive industry, the requirements for the performance of automotive engines are higher and higher. The automobile engine is the most important part of the automobile. Honing is the main way to process cylinder holes. So, the way of honing process and the quality of diamond cylinder honing stones affect the quality of the cylinder.

Send email to us

Product Detail

Product Tags

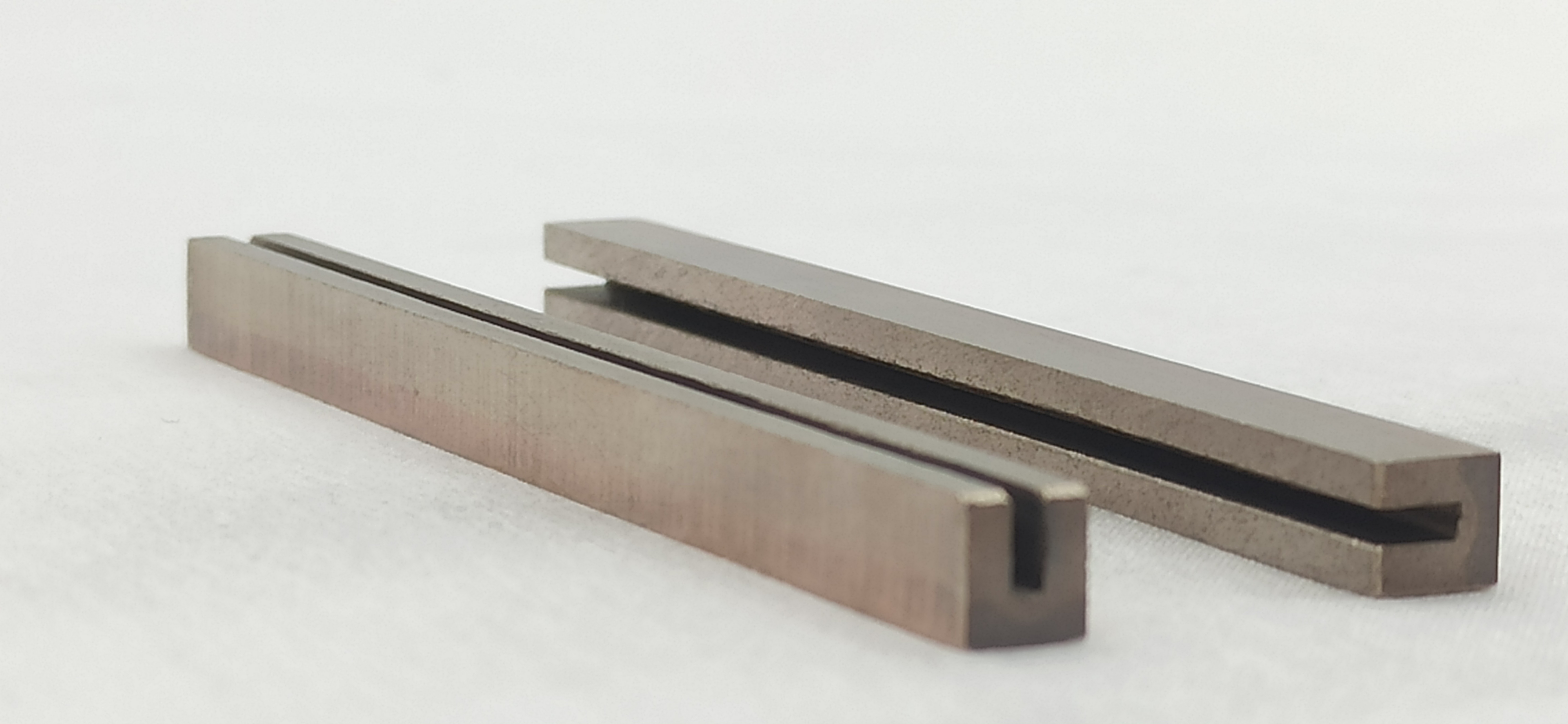

Diamond Honing Stones
Synthetic diamond is used to process hard and brittle materials, such as honing high carbon steel, cast iron, cemented carbide,etc.

CBN Honing Stones
Cubic Boron Nitride hardness is lower than diamond, but strength, heat resistance, chemical stability is good, mainly used for honing high strength alloy steel, tool steel, stainless steel heat-resistant alloy steel.

For Advantage of our diamond honing stone
1.Out performs ordinary stone in cutting action,finish speed and wear resistence.
2.Superior performance with increased efficiencies perfect for any size operation.
3.Low production cost,high precision and long workpiece life.

Replacement of SUNNEN Honing Stone Series Specifications

K series: K3, K4, K5, K6, K8, K10, K12, K16, K20, AK20

SUNNEN Honing Stone K Series Specifications
Series Number	K3	K4	K5	K6	K8	K10	K12	K16	K20
Stone length(mm)	14.25	14.25	17.25	19	31.5	31.5	44	57	63
Bone Dia.(mm)	2.54-3	3-4	4-5	5-6	6-8	8-9.5	9.5-13	13-16	16-19
Adapter	K3-A	K4-A	K5-A	K6-A	K8-A	K10-A	K12-A	K16-A	K20-A

B series: BL3, BL4, BL5, BL6, BL8, BL10, BL12, BL16, BL20

SUNNEN Honing Stone BL Series Specifications
Series Number	BL8	BL10	BL12	BL16	BL20
Stone length(mm)	47	47	60	114	114
Bone Dia.(mm)	6-8	8-9.5	9.5-13	13-16	16-19
Adapter	BL8-A	BL8-A	BL8-A	BL8-A	BL8-A

L series: L3, L4, L5, L6, L8, L10, L12, L16, L20

SUNNEN Honing Stone L Series Specifications
Series Number	L3	L4	L5	L6	L8	L10	L12	L16	L20
Stone length(mm)	25	25	32	36	57	57	89	114	114
Bone Dia.(mm)	2.54-3	3-4	4-5	5-6	6-8	8-9.5	9.5-13	13-16	16-19
Adapter	BL3-A	BL4-A	BL5-A	BL6-A	BL8-A	BL10-A	BL12-A	BL16-A	BL20-A

H series: H70, H50
YY series: YY32, YY48, Y56, Y32, Y20

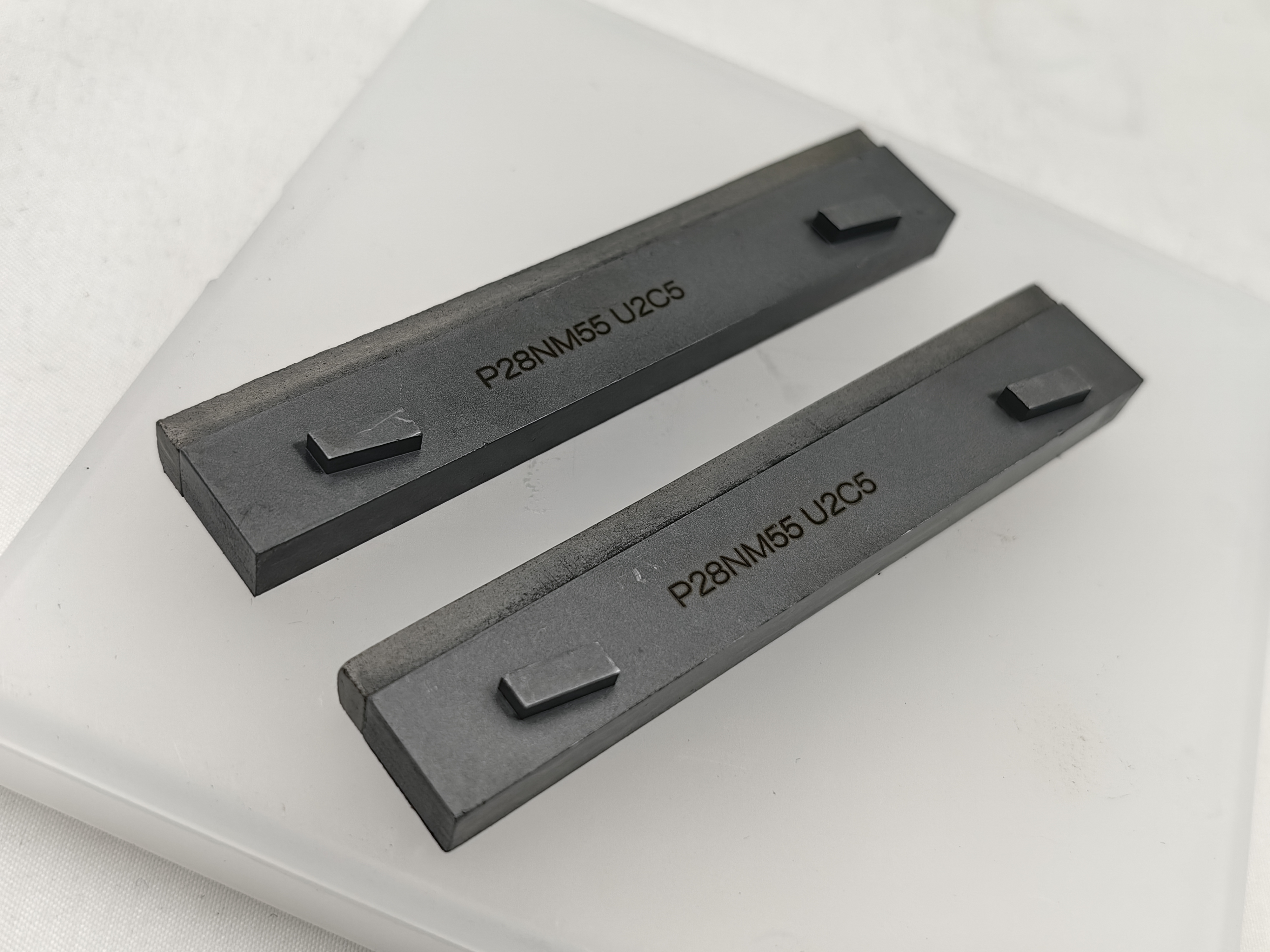

Other series: AL20, P20, P28

We also offer customized services
These CBN and diamond honing stones are used on SUNNEN, NAGEL, GEHRING, KADIA, FUJI, NISSIN machine, and etc.

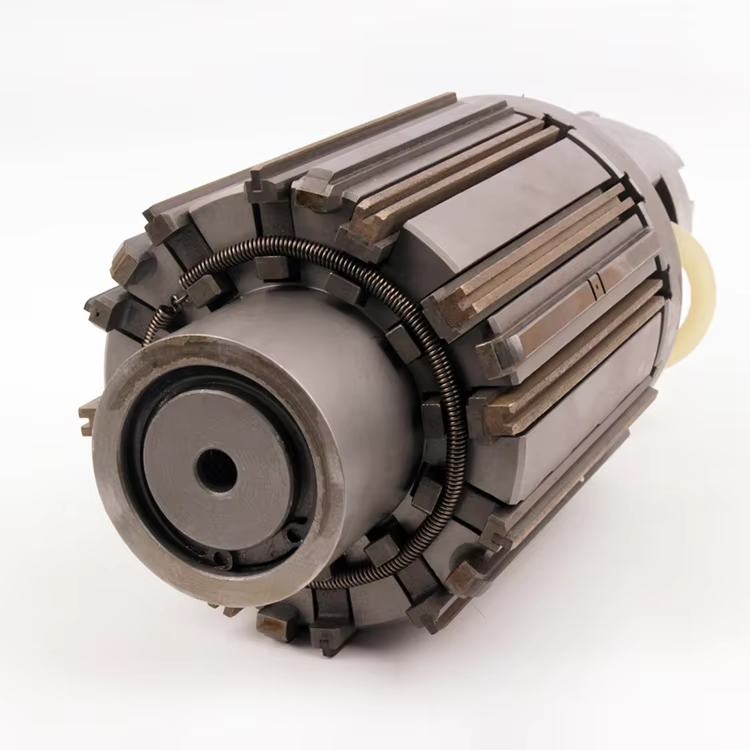

Cylinder Honing Head
Multiple-stone honing tool with integrated carbide guiding and sizing shoes;
High Cutting Efficiency;
High Geometric Accuracy;
Fine Surface Finish(Roughness).
Applicable area
Fine grinding engine pump body, hydraulic cylinder bore, hydraulic pump inner bore, cylinder block, valve,oil cylinder nozzle and cylinder hole and blind hole of other series.

Applicable honing machine
Sunnen, Nagel, Belden, AccuCut, Engis, and other types of high-production honing equip.

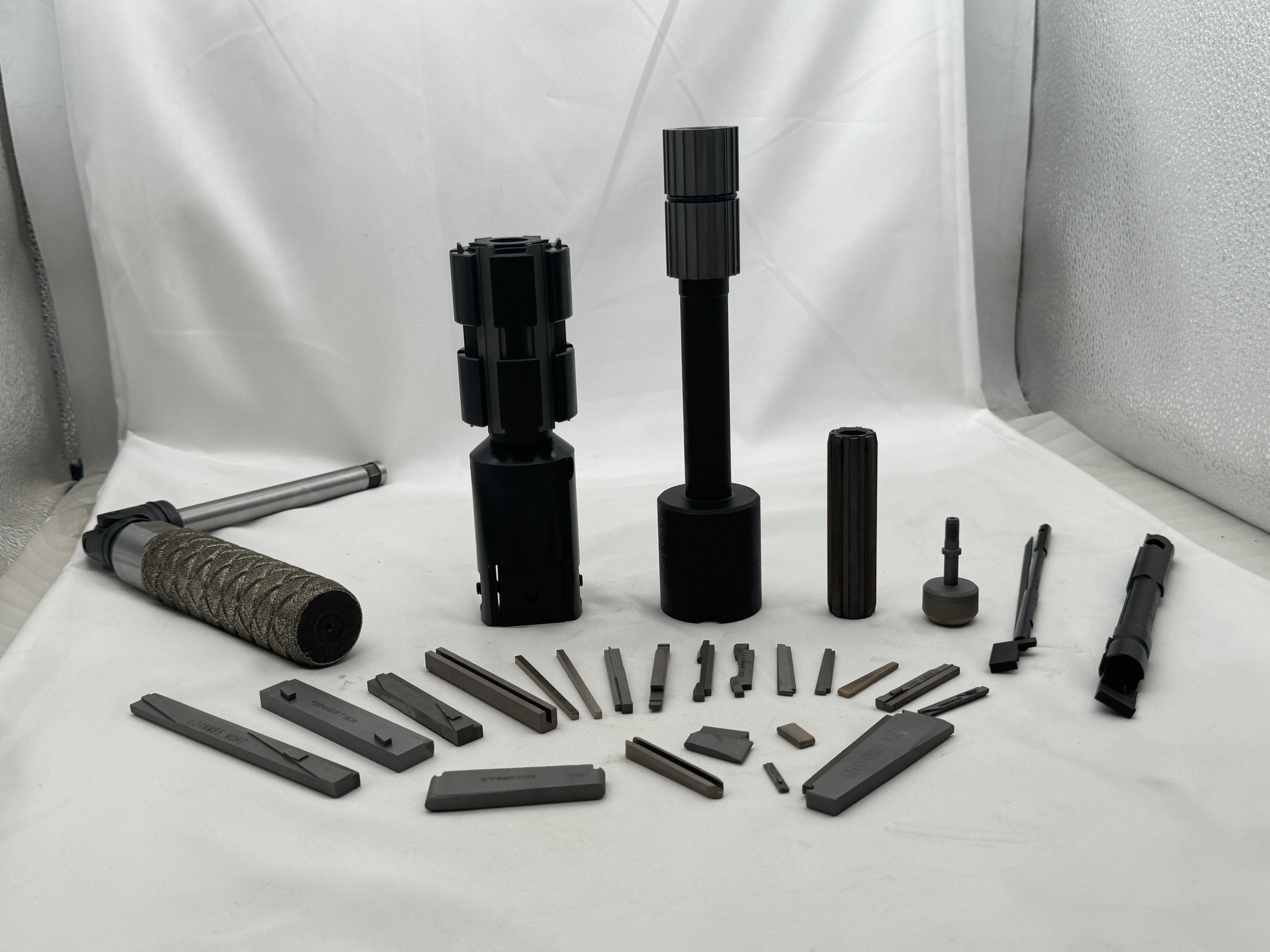

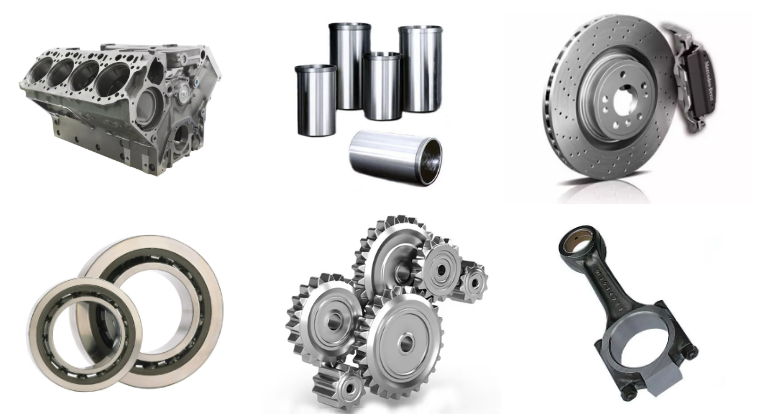

Our company uses various sizes of diamond and CBN powders, through metal sintering, to produce various specifications and various sizes of honing rods, which are widely used in the honing of automobile engines, cylinder liners, connecting rods, gears, shift forks and other parts. High efficiency, stable precision and long life.
Applicable machine brand: SUNNENSERDIROTTLERCARMECRobinsFENTECH
