Resin Bond Diamond Wheels Surface Grinding Wheel for Mold Dies and Punch

Short Description:

For mould and die making, grinding wheels must be carefully selected based on the workpiece material, desired finish, and grinding process. Key factors in selection include the abrasive type, grit size, bond, and grade. Specialized superabrasives like diamond are often used for precision grinding of hard tool steels and carbides


Product Detail

Product Tags

Mould Die Grinding Wheel

Product Specification
Available shape
1A1, 3A1, 14A1
Available body type
Steel, Aluminium, Abrasive
Minimum thickness
0.0118″
Maximum OD
6″
Working Condition
Grinding Type
Dry/Wet
Grinding Method
Flat Surface Grinding
Workpiece Material
Carbide,Hardened Steel,HSS
Coolant
Walter/Oil/Emulsion
Machine Type
Wasino, Amada, Waida, Petewe

1.Due to its self-sharpening, resin bond wheel is easy to use and is suitable for roughing – finishing.
2. Due to moderate abrasive holding strength and wear-resistance, this wheel is suitable for roughing with free cutting.
3.Due to elasticity, this wheel using fine grits is suitable for finishing.

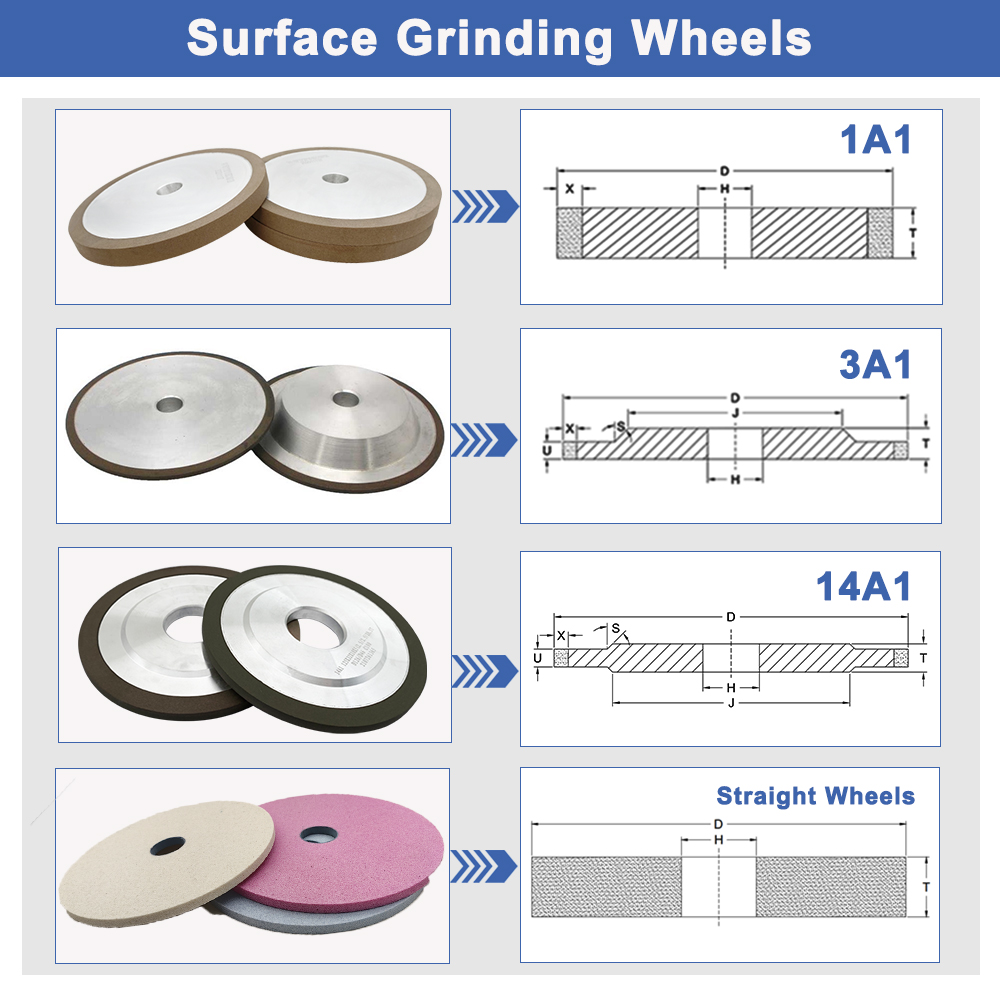

mould die grinding wheel-2

Resin bond diamond grinding wheels are suitable for carbide molds and dies, hardened steel molds and dies, and punches.

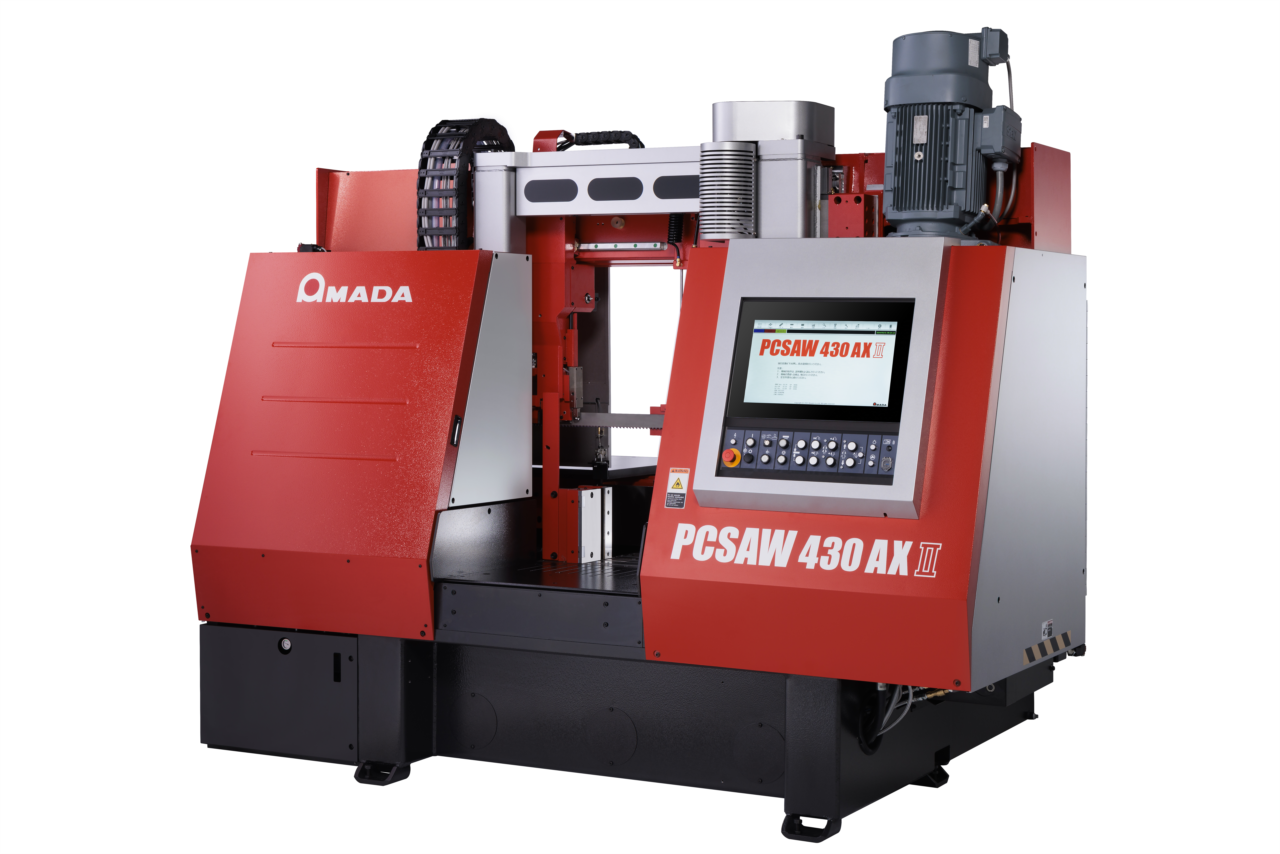

Amada
Waida_看图王
Wasino
