3A1 Resin Bond Diamond CBN Grinding Wheel fluting Gashing for Solid Carbide HSS Tool

Short Description:

Metalworking tools needs of milling, turning, boring, drilling, threading,cutting and grooving. These tools are usually made of High-Speed Steel,Tool Steel,Tungsten Carbide,Synthetic Diamond,Natural Diamond,PCDand PCBN.All these materials are very hard, above HRC30. So when grind them, you usually need Diamond or CBN Grinding Wheels. Ruizuan designed resin bond and hybrid bond diamond cbn grinding wheels for sharpening them.

Send email to us

Product Detail

Product Tags

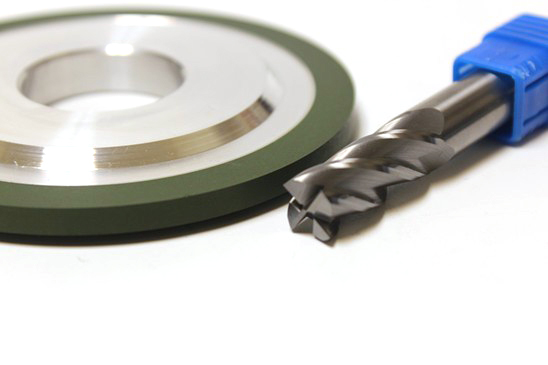

Metalworking Tools Diamond CBN Grinding Wheel
Resin Bond is the best choice for small stock removal material. Resin bond offers a very nice surface finish when resharpening cutting tools. resin bond provides better performance in high-temperature durability.

Bond	Resin / Hybrid	Grinding Method	Sharpening Fluting Gashing Cylindrical Grinding

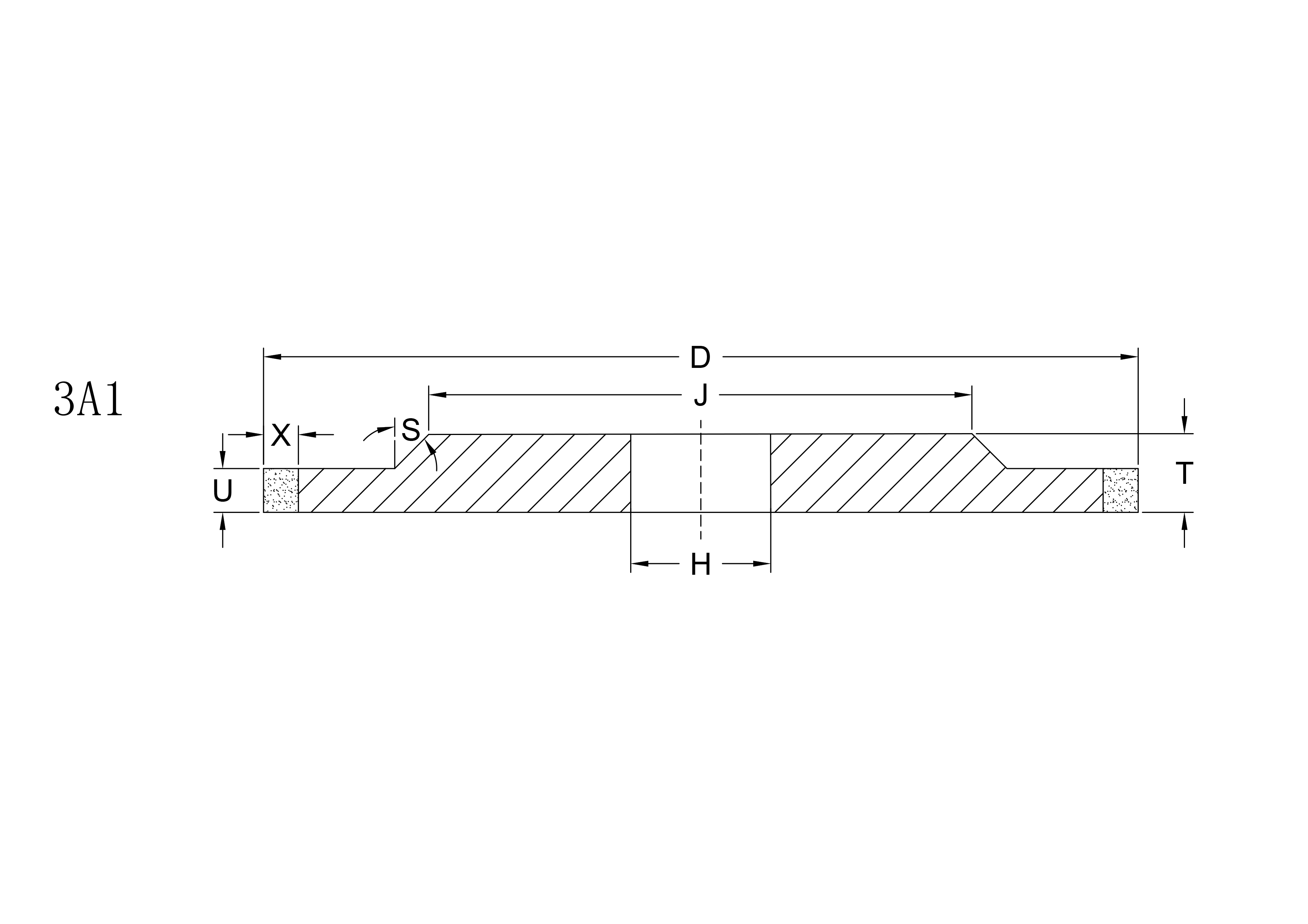

Wheel Shape	1A1, 1V1, 3A1,11V9, 11A2, 12V9, 12A2	Workpiece	Metal cutting tools
Wheel Diameter	75, 100, 125, 150, 200mm	Workpiece Materials	Tungsten CarbideHSS steel
Abrasive Type	SD, SDC, CBN	Industries	MetalworkingMetal Cutting
Grit	80/ 100/ 120/ 150/ 180/ 220/ 240/ 280/ 320 /400	Suitable Grinding machine	Tool Cutter Grinder
Concentration	100, 125, 150	Manual or CNC	Manual & CNC
Wet or Dry Grinding	Dry & Wet	Machine Brand	Walter Star Vollmer ISELLI

Advantages of grinding wheel on CNC machine
1.Low cutting forces
2.High material removal rates
3.Low machine power consumption
4.Low frictional heat
5.Smooth surface finish and edge quality
6.High profile retention ability
7.Long dressing interval

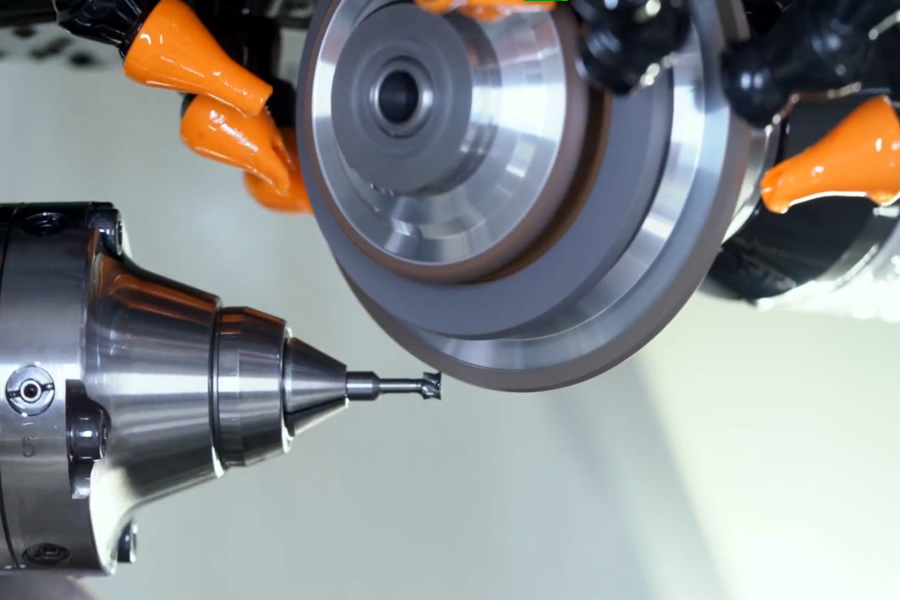

1.We provide a complete solution for CNC tools manufacturing process, including fluting, gashing and Clear edge, relief angle grinding .
2.Application Materials:Tungsten Carbide,high speed steel (HSS), stainless，PCD,PCBN,Ceramic
3.Application workpieces:End mill, drill, reamer,cutting Carbide & HSS rod,lather tools,tool grinding,etc

Application machines

Universal Cutter Grinder:TM TOOLMASTER、CUTTERMASTERS、DECKEL、MICHAEL DECKEL ISOG、VEVOR、Shars、MRCM、WARCO、EWAG、Anca、Cincinnati、Griffo、Haro、Hawema、Huffmann、Jungner、Kirner、Pe Te We、Rollomatic、Saacke、Gebr.、Safag、Wadkin、Walter、Schneeberger、Schutte、Sorenco、Stausak、Stream、Tacchella、Viking、Tempo、Straussak、Stream、Watkins

CNC tool grinding machine ： 2-axis，3-axis，4-axis，5-axis，6-axis CNC tool grinding machine
