Resin Bond CBN Grinding Wheel Gear Hob Cutter Grinding Wheel

Short Description:

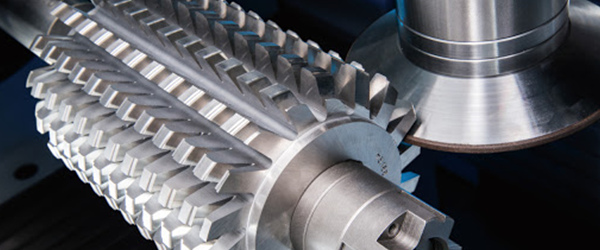

Gear hobbing cutter grinding wheels are specialized abrasive tools designed specifically for sharpening and maintaining high-speed steel (HSS) gear hobs. These precision wheels typically feature CBN (Cubic Boron Nitride) as the abrasive material, bonded with either resin or metal matrices to create tools that can grind the intricate cutting edges of gear hobs with micron-level accuracy .

Send email to us

Product Detail

Product Tags

Ceramic CBN grinding wheel, resin CBN grinding wheel, metal CBN grinding wheel for gear hob rake surface grinding, forming grinding, and sharpening.
The single beveled CBN grinding wheel can be used for hob grinding. Grinding wheel uses end grinding, the outer circle is very thin, can be ground to the bottom of the edge. CBN grinding wheels are used for forming and grinding of high-speed steel (hss) gear hob and thread cutting tools ( hardness above HRC60).

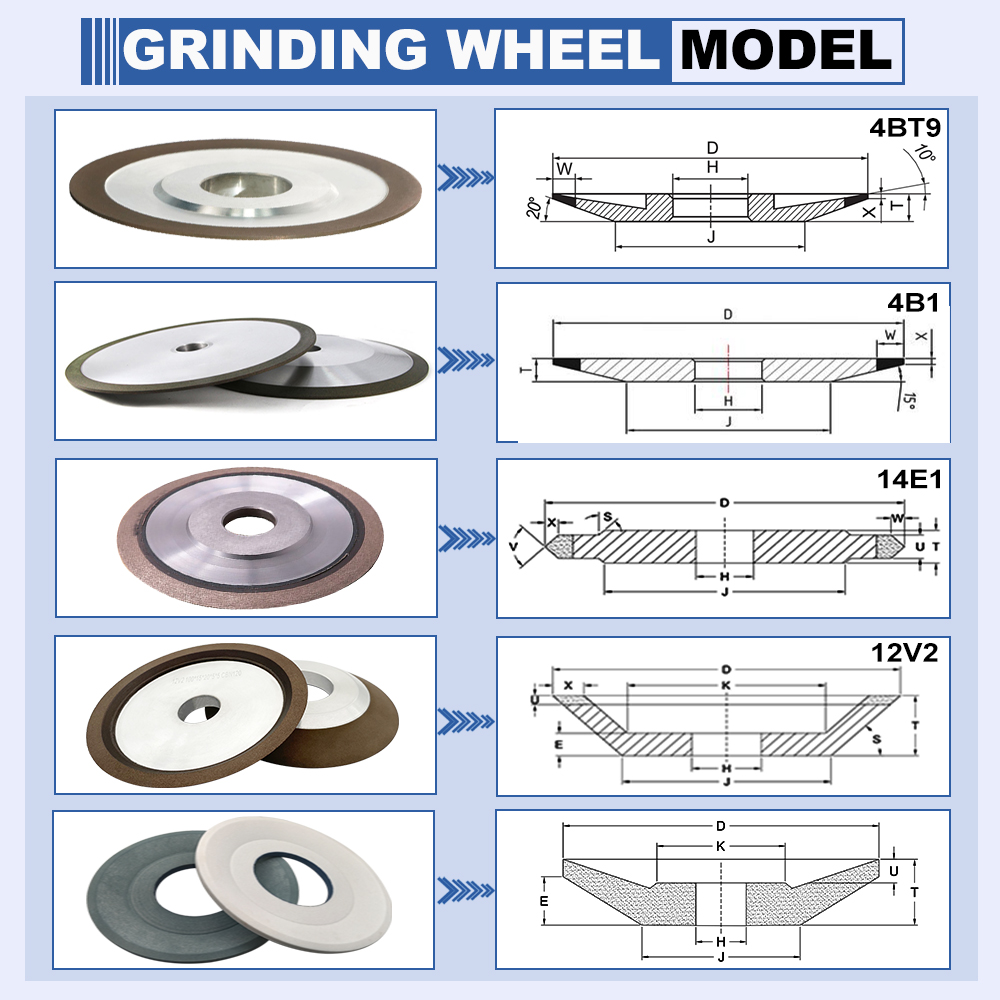

Shape	D (mm)	W (mm)	X (mm)	T (mm)
4BT9	100	10	1	10
	150	10	3	10
4V4	100	6	1	10
other grinding wheels size can be customized

1.Grinding wheel uses end grinding, the outer circle is very thin, can be ground to the bottom of the edge.
2.Good wear resistance and low loss
3.Dry grinding and wet grinding
4.High grinding precision, Reduced grinding forces
5.Good surface finish

Gear Hobbing Cutter Grinding Wheel for Reconditioning and sharpening hobs, taps, and other cutting tools，Maintaining the precision of thread-cutting tools

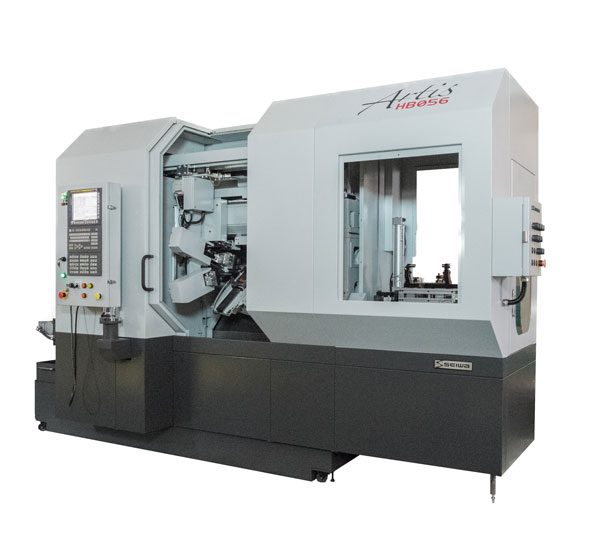

Application Machine：SEIWA,MITSUBISHI,Kashifuji,Schneeberger CNC tool grinder
